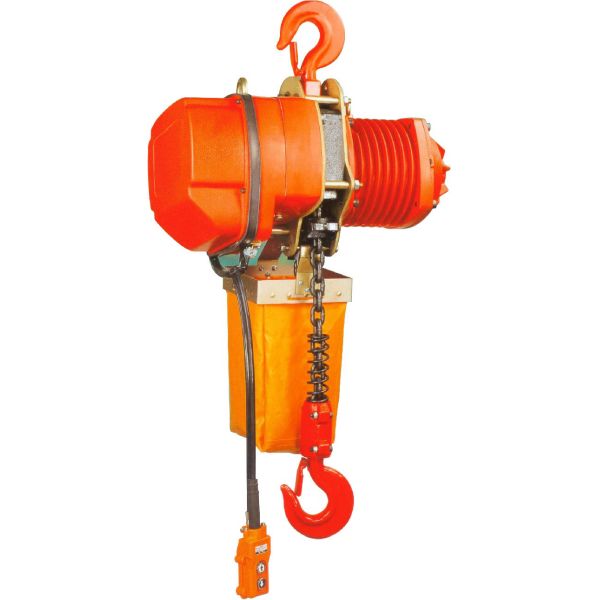

Compact Design Small Electric Chain Hoist , Various Capacity Shh Type

Compact Design Small Electric Chain Hoist , Various Capacity Shh Type

• Type: Suspension or trolley running

• Usage: Material handling, metallurgy, mining, oil, petrochemical, etc

• Sling Type: Wire rope

• Maximum Lifting Weight: 10t

• Maximum Lifting Height: 120m for small capacity

• Lift Speed: 1~7.6m/min

• Power Source: 3P, 380V, 50HZ, other type also available

• Controler: Pendent control, remote control

• Certification: ISO9001:2008, CE

Electric Chain Hoist, Chain Block, Compact Structure Electric Chain Hoist

Detailed Product Description

The chain hoist series was designed for heavy duty industrial applications, which greatly reduce down time and operational costs. Nante chain hoists tolerate large loads with ease and require little maintenance. They provide more allowance for side pulling, and provide true vertical lift at no extra cost. Featured by safe usage, reliable quality, long service life, it is widely used in handicraft industry and light industries, even some service industry, serve as a tool for improving working efficiency and labor condition.

1. Compact and high efficient motor: dc brake system without asbestos, consumption of electricity reduced efficiently.

2. Hoist body: Pressing steel structure, high strength body, light and compact.

3. Most tensile safety hooks: both the top and bottom hook made of high tensile alloy steel, with special treatment, it gradually under a sudden extra-load.

4. Compact and beauty chain container: High strength plastic container have outstanding durability.

5. Limit switch devices: Fitted at both top and bottom ends, switch off power automatically to prevent load chain from running out.

6. Phase error relay: A specially designed current-post, prevents motor from running at incorrect wire connection.

Product competitive advantages:

1. Steel material-durable and absolutely environmental friendly

2. Light weight-easy to carry around, store and transport.

3. High quality-strong loading capability, all our products are with 3 years guarantee

4. Unique design-with perfect craftsmanship, novel design for your special request.

5. Favorable price-with competitive price under the assurance of quality

Application

Whether chain hoist or wire rope hoist, electric or pneumatic; our line of powered hoists are ideal in manufacturing, power generation, and industrial facilities where heavy items are lifted and positioned as part of production or warehousing. Our new model high-capacity wire rope hoist complements our line with capacities up to 50 Tons. We offer a full line of manual hoists, both hand chain and lever tools, which are used primarily for maintenance and construction activities.

Design features:

• With suspension hook. push, geared or electric trolley.
• Standard lift height 3 m, control cable 2.5m
• Operating voltage 220-440V, 50/60Hz, 1-3 phase
• Low voltage control 36V is standard.
• High efficient energy-saving motor, asbestos free brake system.
• Light weight, compact and solid body case.
• Top and bottom hooks are fitted with safety latches as standard.
• Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
• Solid chain bucket.
• Super strong surface hardened chain
• Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
• Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
• Overload protection and thermal protection.

Technical Parameters

chain hoist trolley

electric chain hoist with trolley
